Agrandir Patriot Linear High Bay

Patriot Linear High Bay

The Patriot is a CCT SELECTABLE AND WATTAGE SELECTABLE DIE-CAST ALUMINUM LED linear high bay featuring a super compact design with die-cast housing with powder coated paint. Standard 6KV surge protection provides steady performance, even under poor power conditions. Occupancy sensor, remote controller, and emergency battery backup options available. The Patriot is ideal for warehouse, storage, industrial facilities, sports facilities, gyms and more.

Features

Available in 115/130/155W, 155/180/210W, or 240/270/310W models, with CCT Selectable options for 4000K/5000K. High quality polycarbonate lens provides soft, even light to the environment. Standard lens is 95 degree with honeycomb optics to reduce “cave effect.” Also available in 60 degree lighting aisle/racking.

IP20 rated.

IK10 rated.

Patriot Linear High Bay Marketing Video

Patriot Linear High Bay Installation Instruction Videos

Patriot Linear High Bay | How To Adjust Wattage SELECTABLE & CCTS Video

Patriot Linear High Bay | Tandem Mechanical and Electrical Connection Video

Patriot Linear High Bay | How To Install OS Video

Quick Summary

• Wattage:  115/130/155W (Default) | 155/180/210W (Default) | 240/270/310W (Default)
• Mounting: Suspended (Standard - 1m/39” cable), Ceiling Mount, Pendant Mount
• Lumens : (155WS ) - 23250lm, (210WS) - 31500lm, (310WS) - 46500lm
• Optics: 95Dx95D (Standard), 60Dx110D(Aisle)
• CCTS: Selectable 4000K (Default) / 5000K
• CRI: 80+
• Voltage:  120-347V (CUNV), 277-480V (HV)
• Dimming: 0-10V Dimming
• Finish: White
• IP Rating: IP20
• Certification: DLC Premium, UL listed, and CE
• Warranty: 6 Years

Related Products

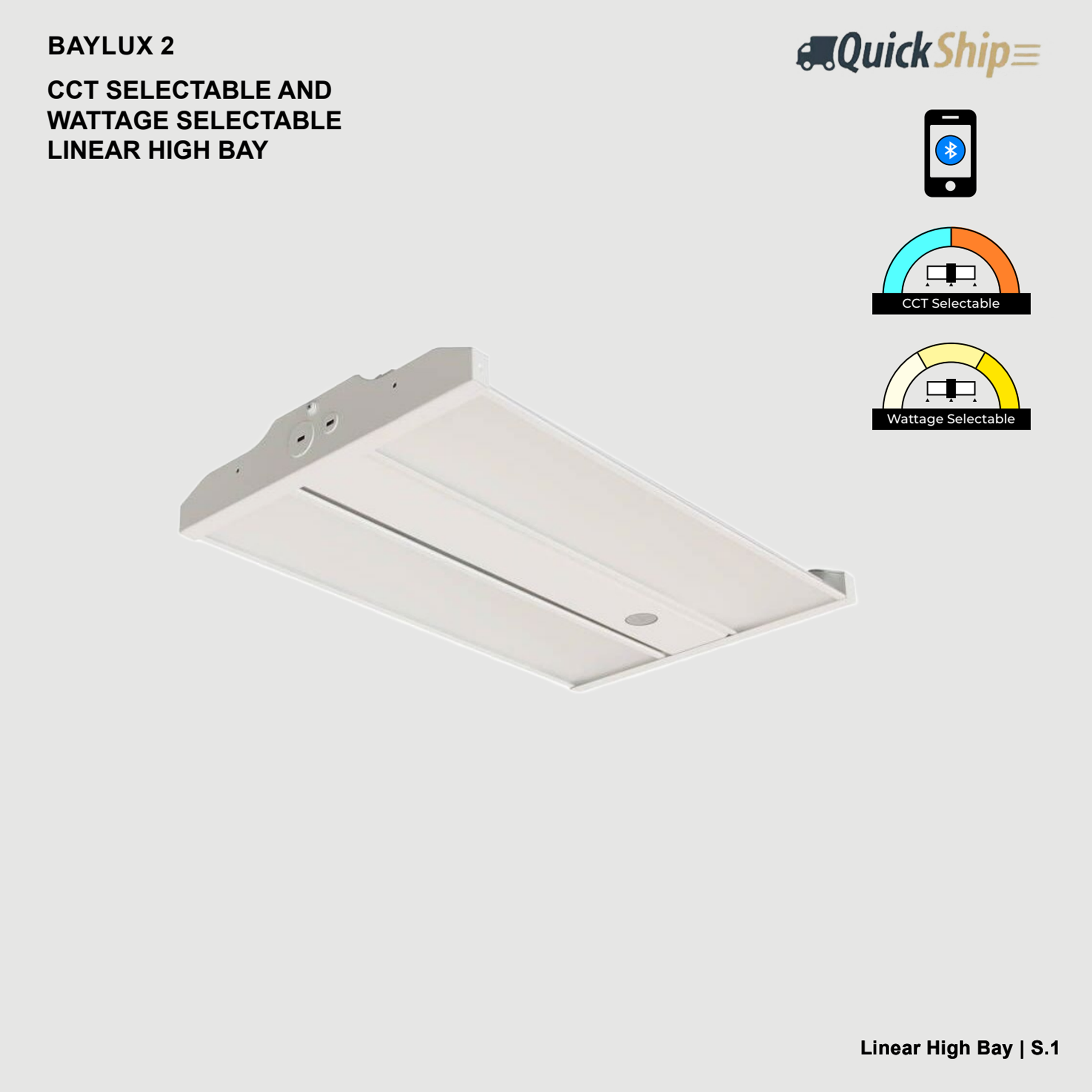

Baylux 2
