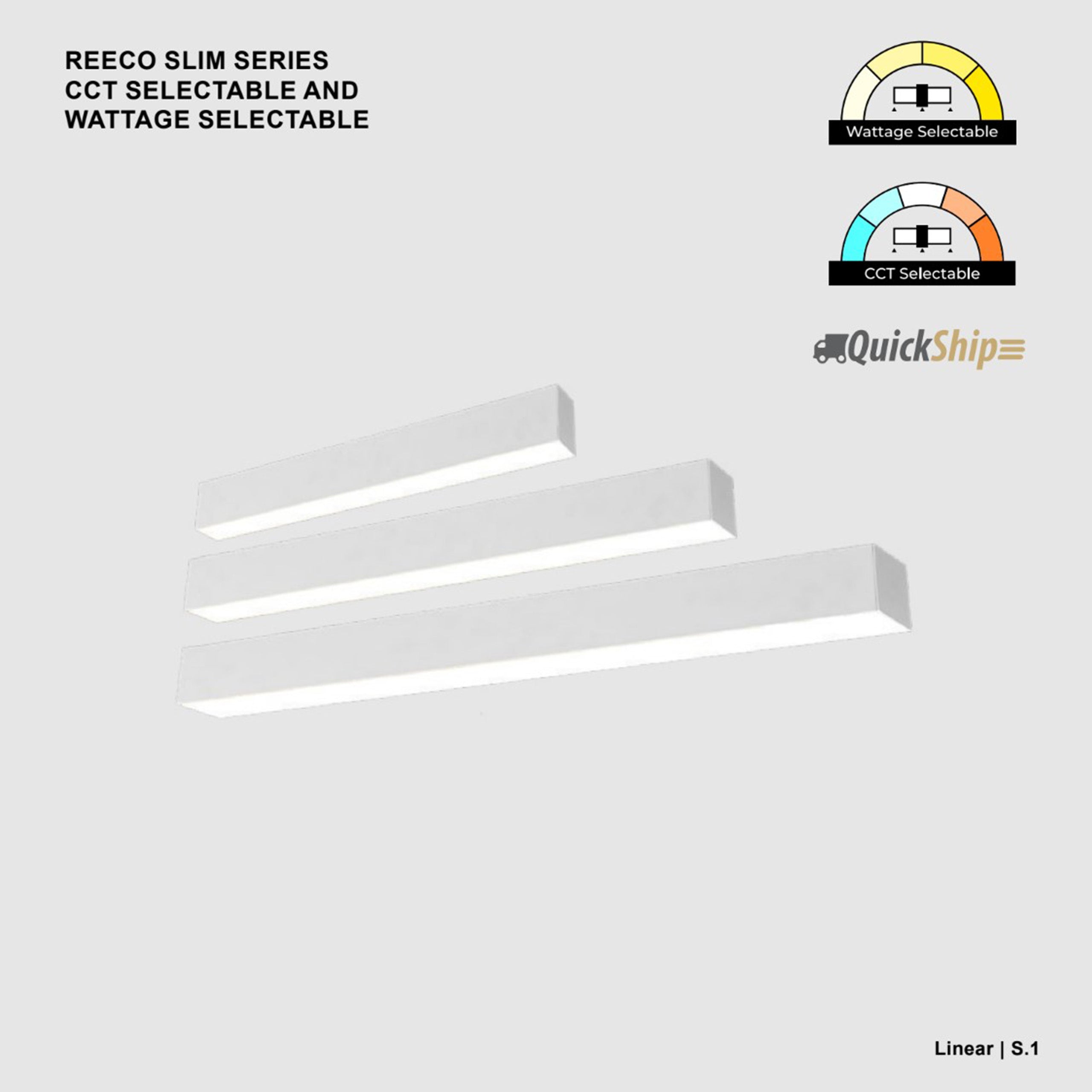

Reeco Slim
The Reeco Slim Wattage Selectable/CCT Selectable LED series offers Premium Light diffusion over a light-weight impact resistant opal polycarbonate lens with different mounting options.
This ultra-efficient versatile LED linear fixture can be widely used for indoor (damp locations). Excellent for hospitals, schools, office, shops, restaurants, storage rooms, supermarkets.
Seemless, continuous run connections. All connectors are lit (Down only).
Standard finish is White only.
It can create a functional yet relaxing atmosphere and provide an even wash of light within a space. Low profile design optimizes shipping, storage, and handling. It comes in four different Luminous ways with
Down (100%), Up/Down (30%/70%), Up/Down (50%/50%).
It is CCT Selectable 2700K/3000K/3500K/4000K/5000K.
Reeco Slim is available in various sizes: 2’(10W/12W/16W/20W), 4’(20W/24W/32W/40W), and 8’(40W/48W/60W/80W).
Light efficacy: 115 LM/W
UNV 120-277V
Five-core Power Cable (47.83in/1.21m) Standard Included with All Fixtures
Default settings: 4000K Highest Wattage (0% Up/100% Down)
CRI 80+
Power factor: 0.9
0-10V Dimming (12Vdc auxiliary dimming)
Ambient Temperature: -20 ~ 50 °C / -4 ~ 122° F
Damp Location Rated
Lifetime: 100,000hrs
Quick Summary
• Wattage: 2’(10W/12W/16W/20W),
4’(20W/24W/32W/40W) and 8’(40W/48W/60W/80W)
• Length: 2ft, 4ft, 8ft
• Lumen : (20WS) - 2300lm, (40WS) - 4600lm, (80WS) - 9200lm
• Mounting: Universal Mount for Ceiling or Wall (Standard), Suspended, Recessed Trim
• CCT: Selectable 2700K/3000K/3500K/4000K/5000K.
• CRI: 80+
• Luminous Way: Up & Down (Selectable)
• Voltage: 120-277(UNV)
• Dimming: 0-10V
• Finish: White (Standard) & Black
• Certification: DLC and cUL listed
• Warranty: 5 Years
