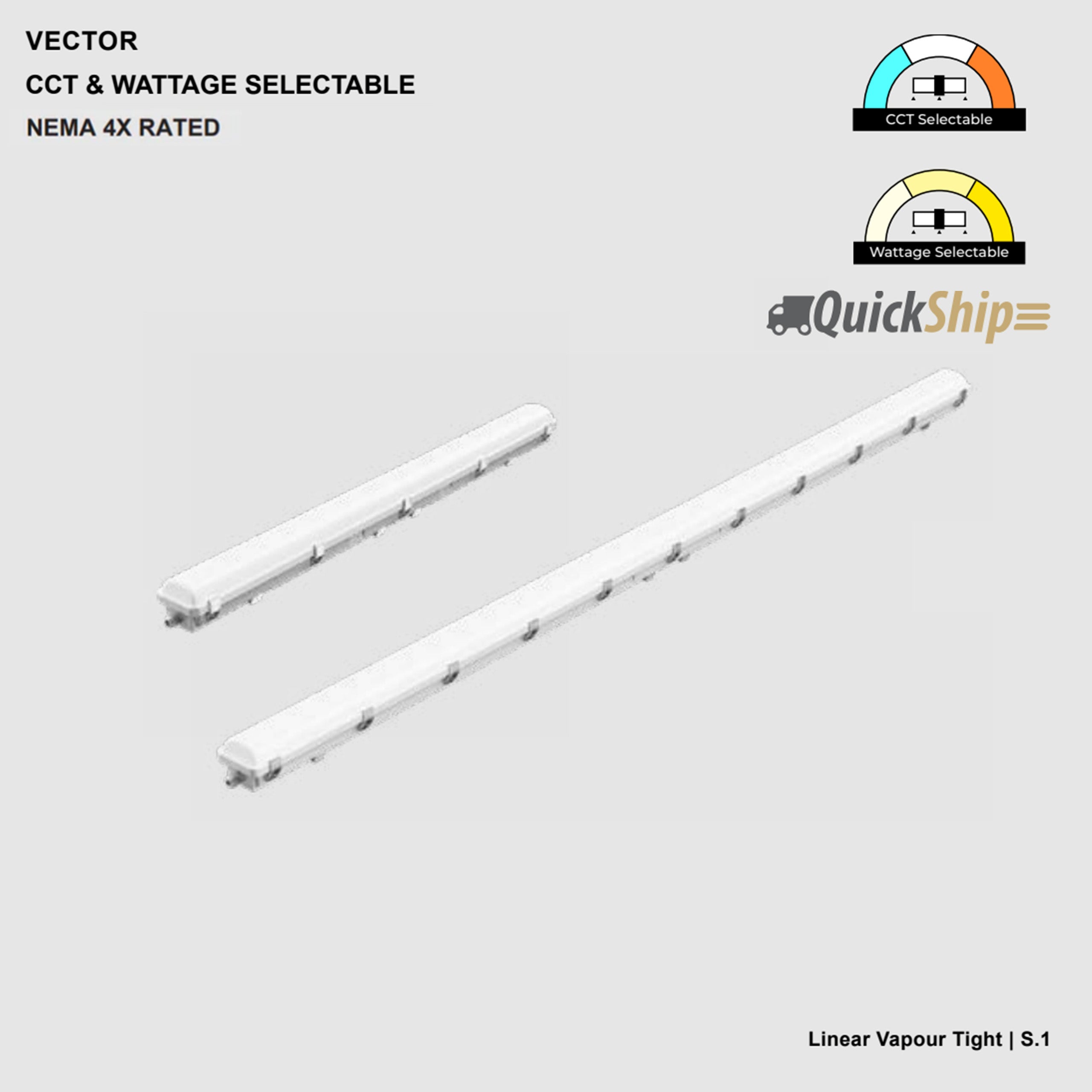

Vector
The Vector is a CCT SELECTABLE AND WATTAGE SELECTABLE LED linear vapour tight fixture. It provides maximum light output with durable construction. Featuring a one piece fire retardant polycarbonate housing and lens, the Vector was designed to meet or exceed IES recommended foot-candle levels at installed heights for parking garages, making it ideal for utility lighting, parking garages, and stairwells where meeting applicable building and safety codes is required.
Features
Wattage selectable 30W / 40W / 50W (4ft) and 60W / 70W / 80W (8ft), with CCT Selectable options for 3000K / 4000K / 5000K.
High quality polycarbonate diffuser integrated with powder coated lighting tray, and stainless steel clips.
IP Rating: IP65
Quick Summary
• Wattage: 4ft: 30W / 40W / 50W | 8ft: 60W / 70W / 80W
• Mounting: Surface Mount (Standard) / Suspension
• Lumens : (50WS) - 6500lm, (80WS) - 10400lm
• Optics: 1200
• CCT: Selectable 3000K / 4000K / 5000K
• CRI: 80+
• Voltage: 120-277V (UNV)
• Dimming: 0-10V
Dimming
(Standard)
• Finish: Grey
• IP Rating: IP65
• Certification: cULus, and DLC Premium
• Warranty: 6 Years
